Barra Factory Boost Control Loom - FG Turbo ECU

This wiring harness will allow you to run factory boost control through a FG Barra turbo ECU.

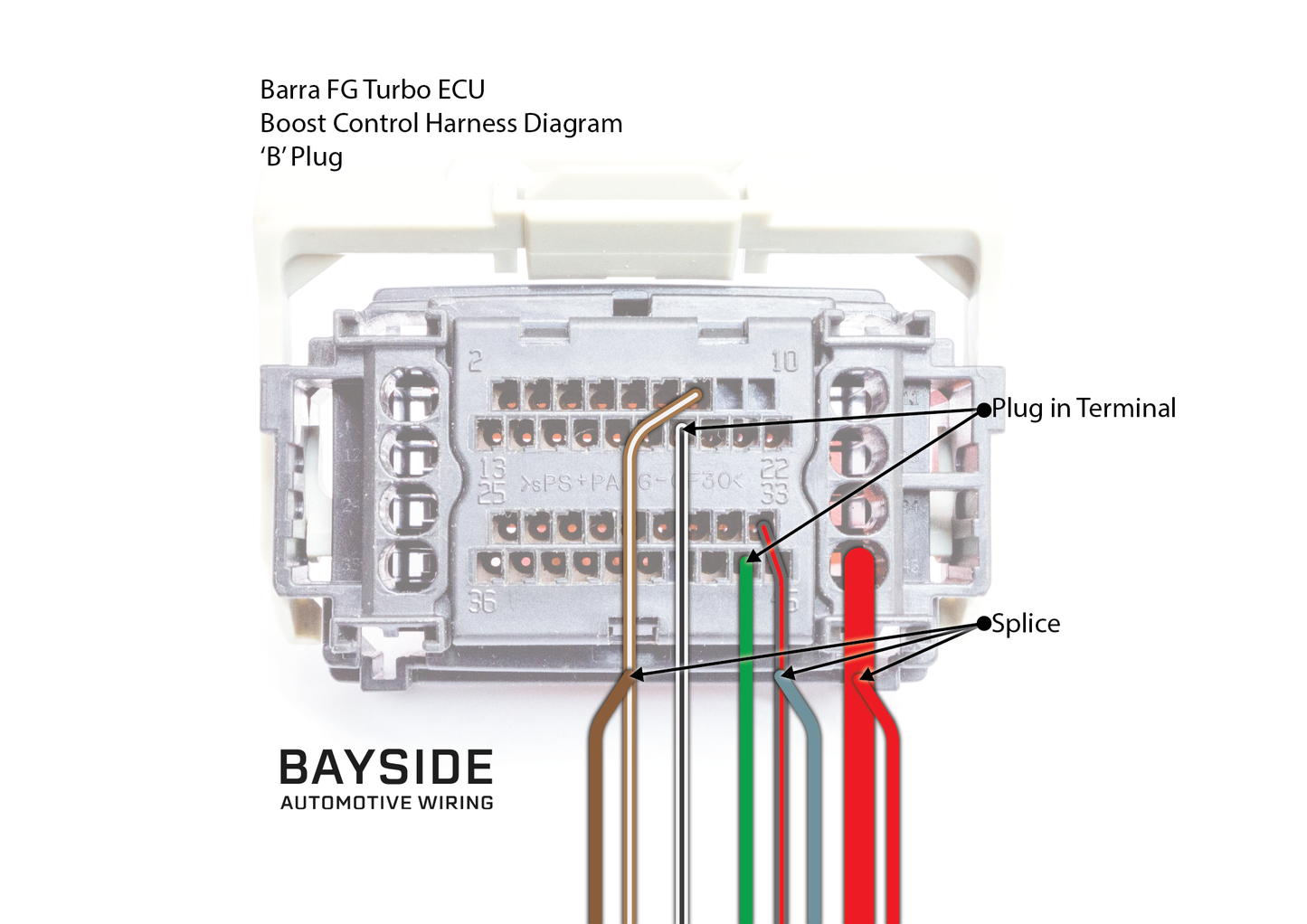

This requires 3 splices to be done by the installer.  (See wiring diagram image)

Grey wire to B33 SIGRTN - Signal Return

Red wire to B46 VPWR - Vehicle Power

Brown wire to B8 VREF - Voltage Reference

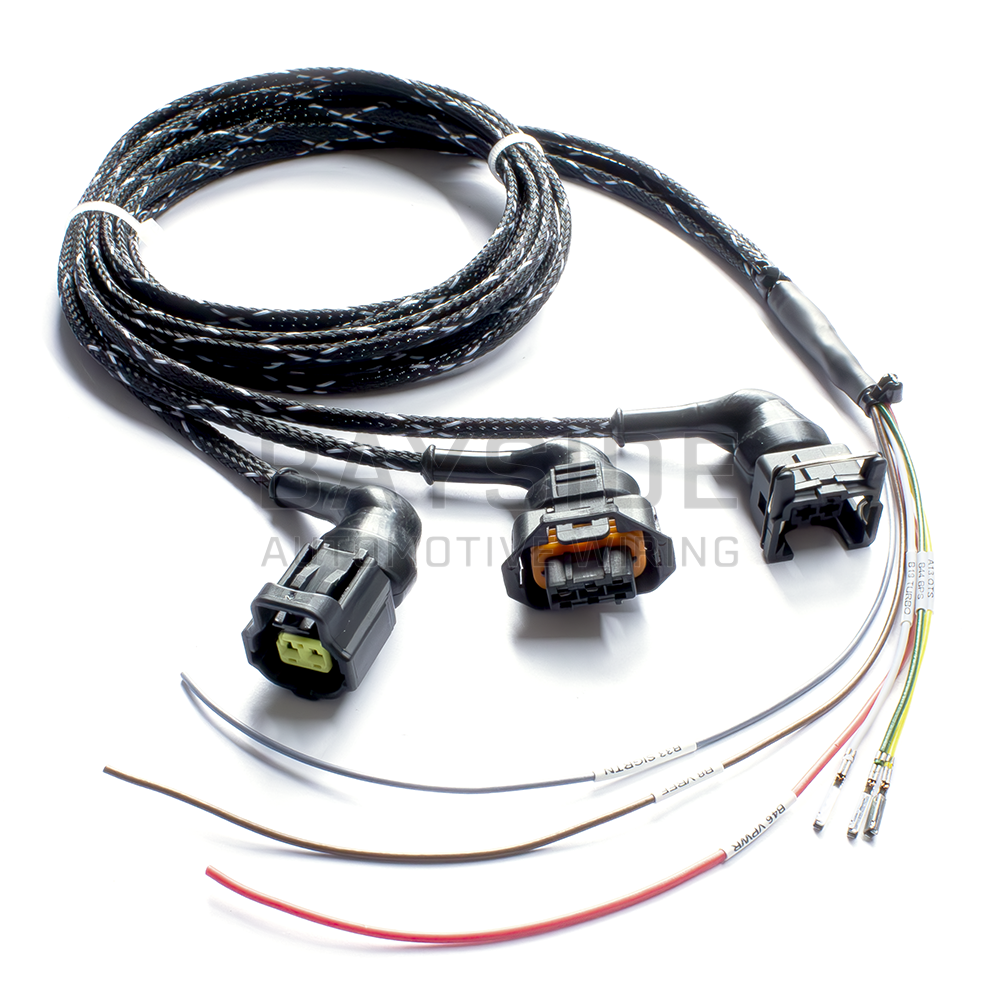

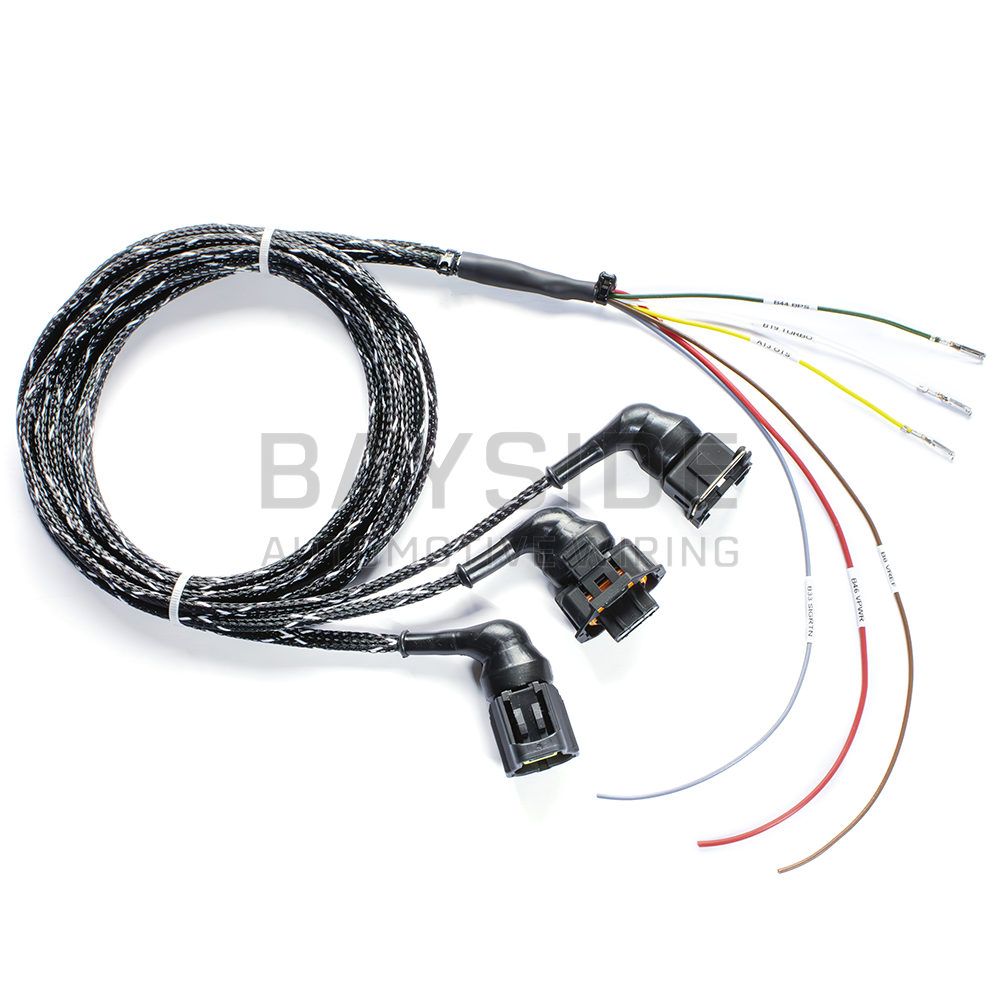

Features of this loom;

    Fully terminated and sealed harness, with ECU connections labelled

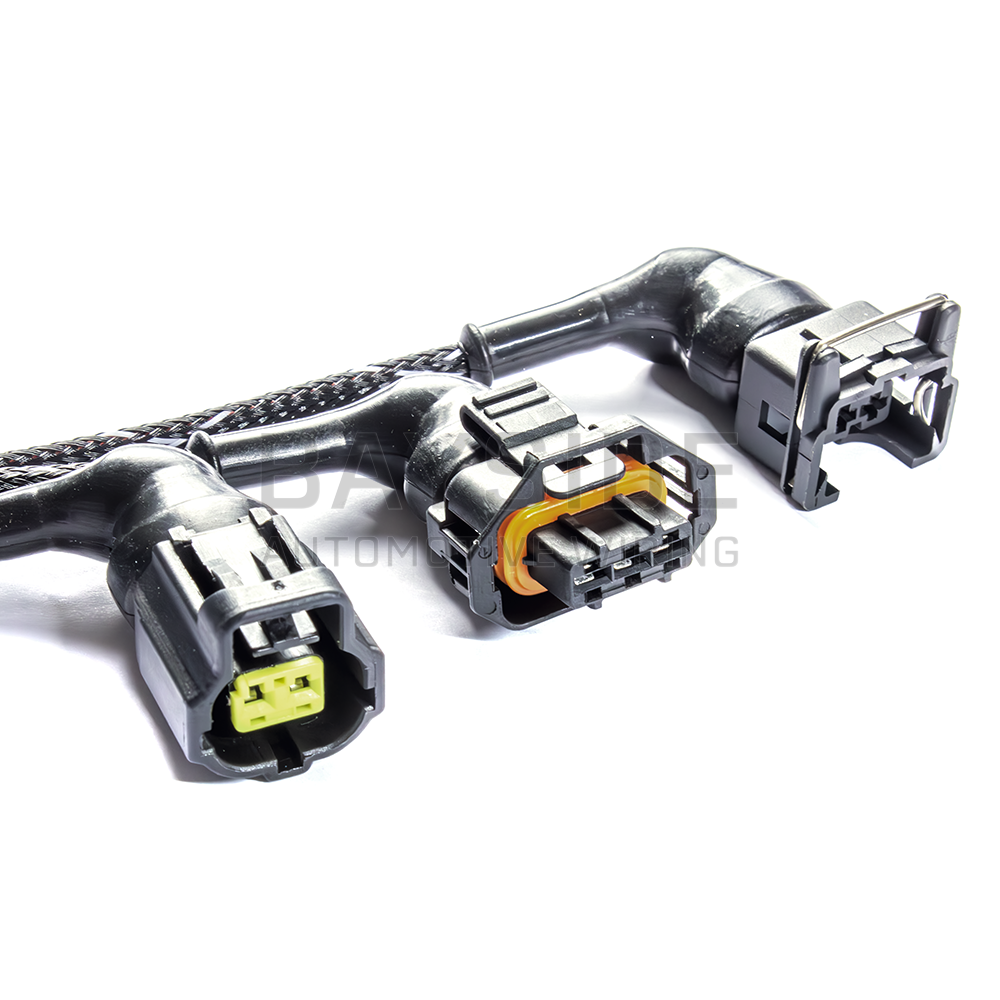

    Oil Temperature Sensor connector with boot (custom 3D printed adapter)

    Our expandable braid sheathing allows for easy routing and a clean looking installation

    Lengths suitable for factory configurations and conversions into other engine bays

Please contact us if you require specific lengths for each section.

Fully wired, assembled and shipped from Australia, with free express shipping Australia wide!

This kit isn't suitable for BA / BF Falcon set ups, these are available here

Wastegate Solenoid & Boost MAP Sensor are not included.
