Barra Factory Boost Control Loom - BA / BF Turbo ECU

This wiring harness will allow you to run factory boost control through a BA / BF Barra Turbo ECU.

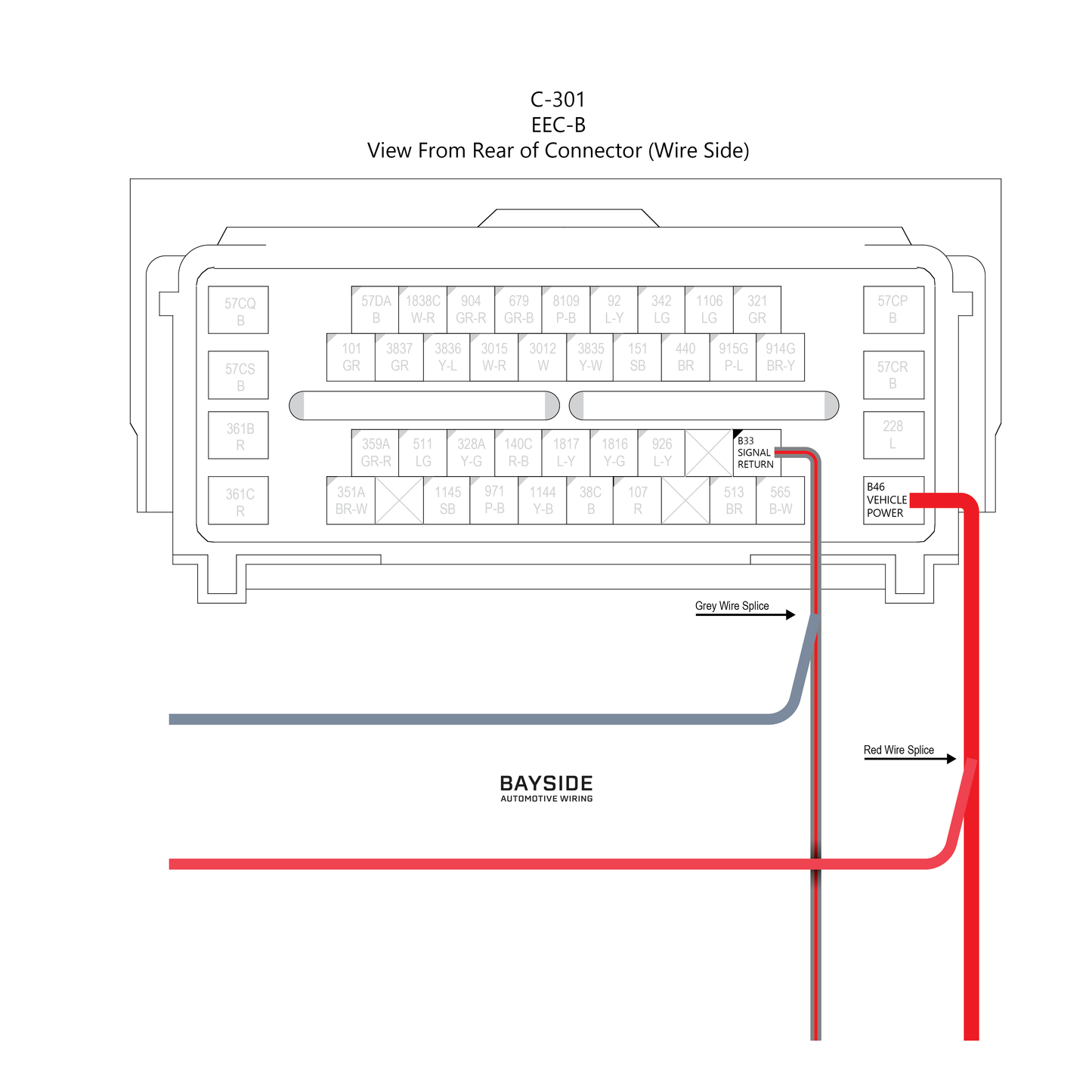

This requires 2 splices to be done by the installer.  (See wiring diagram image)

    Grey wire to B33 Signal Return

    Red wire to B46 Vehicle Power

Features of this loom;

    Fully terminated and sealed harness

    Brand new Barra ECU 'C' Connector

    Brand new connectors for Wastegate Solenoid and Boost MAP Sensor.

    3D printed seal for unused sensor connector positions

    Sealing plugs for unused power connector positions

    1.6m length Wastegate section &  1.3m length Boost MAP section

Please contact us if you require specific lengths for each section.

Fully assembled and shipped from Australia, with free express shipping Australia wide!

This kit isn't suitable for FG Falcon set ups.

Wastegate Solenoid & Boost MAP Sensor are not included.
