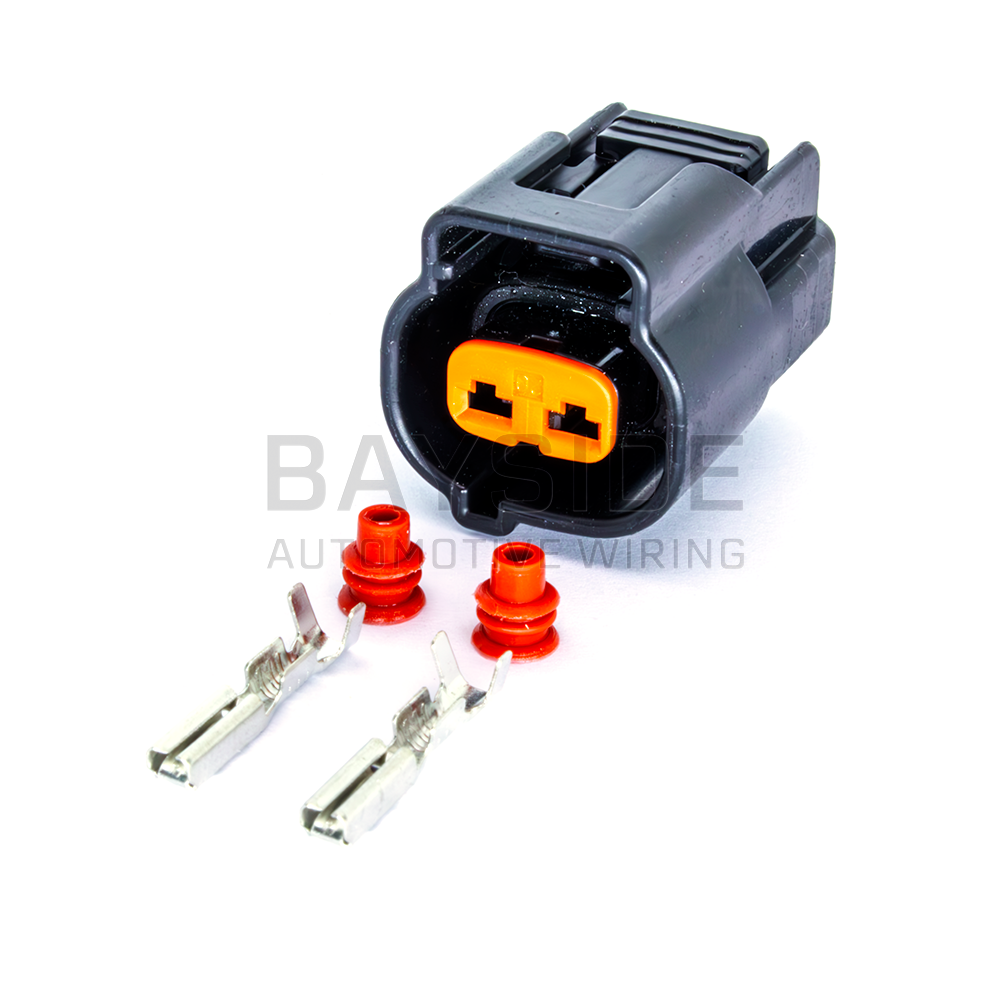

• VCT Actuator Connector - Barra BA / BF / FG front angle kit

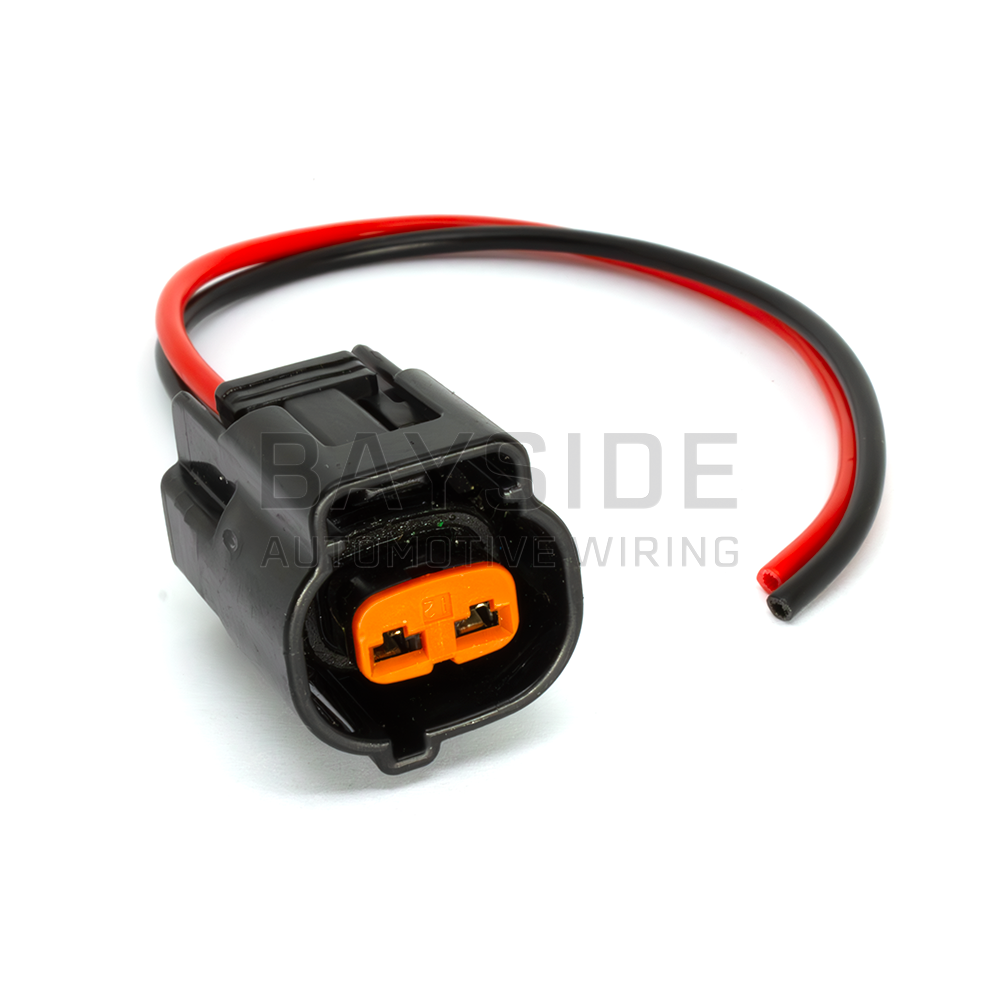

  • VCT Actuator Connector - Barra BA / BF / FG front angle with wires

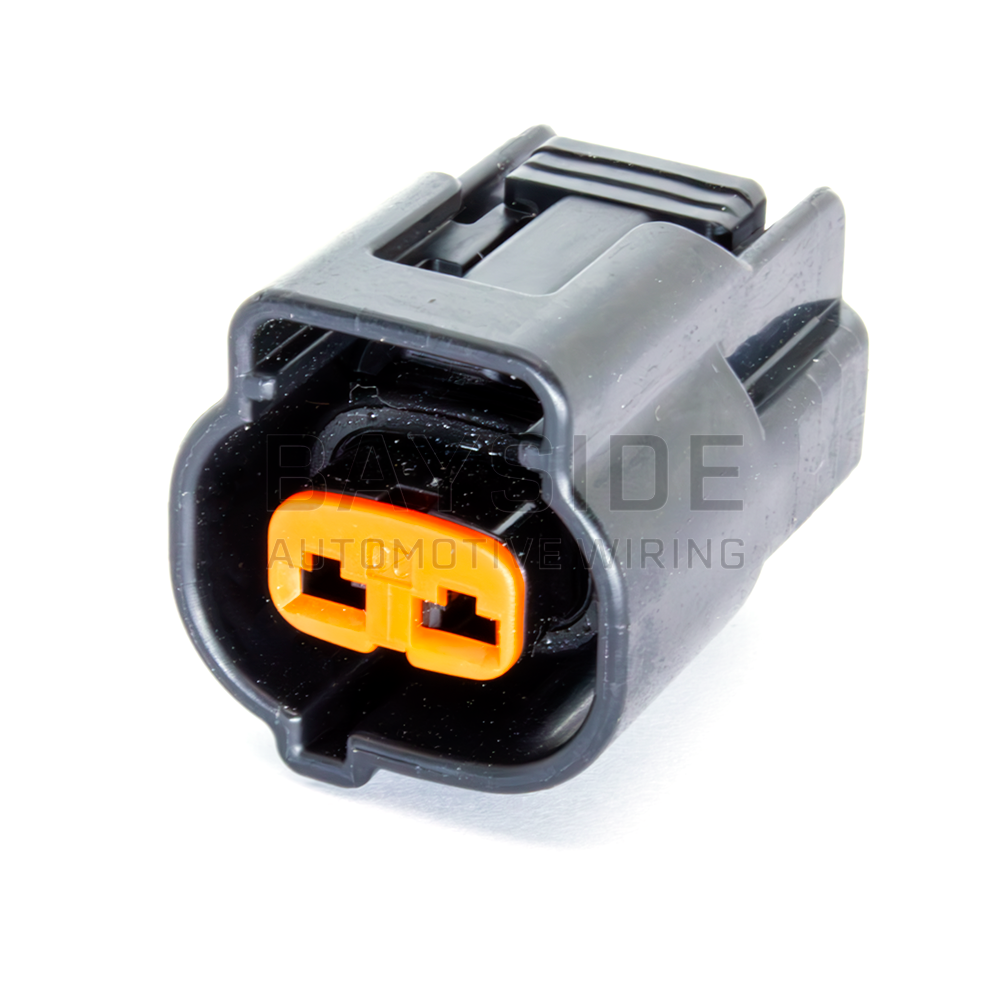

  • VCT Actuator Connector - Barra BA / BF / FG front angle

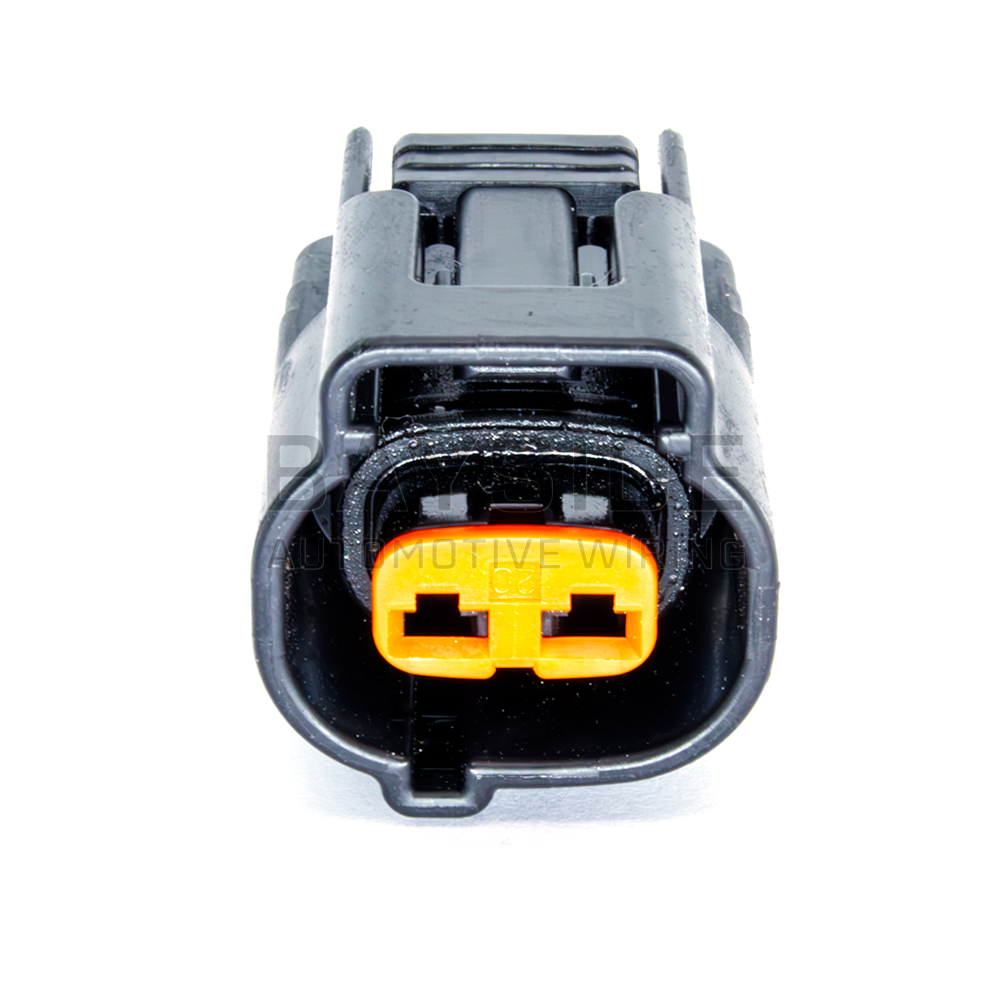

  • VCT Actuator Connector - Barra BA / BF / FG front view

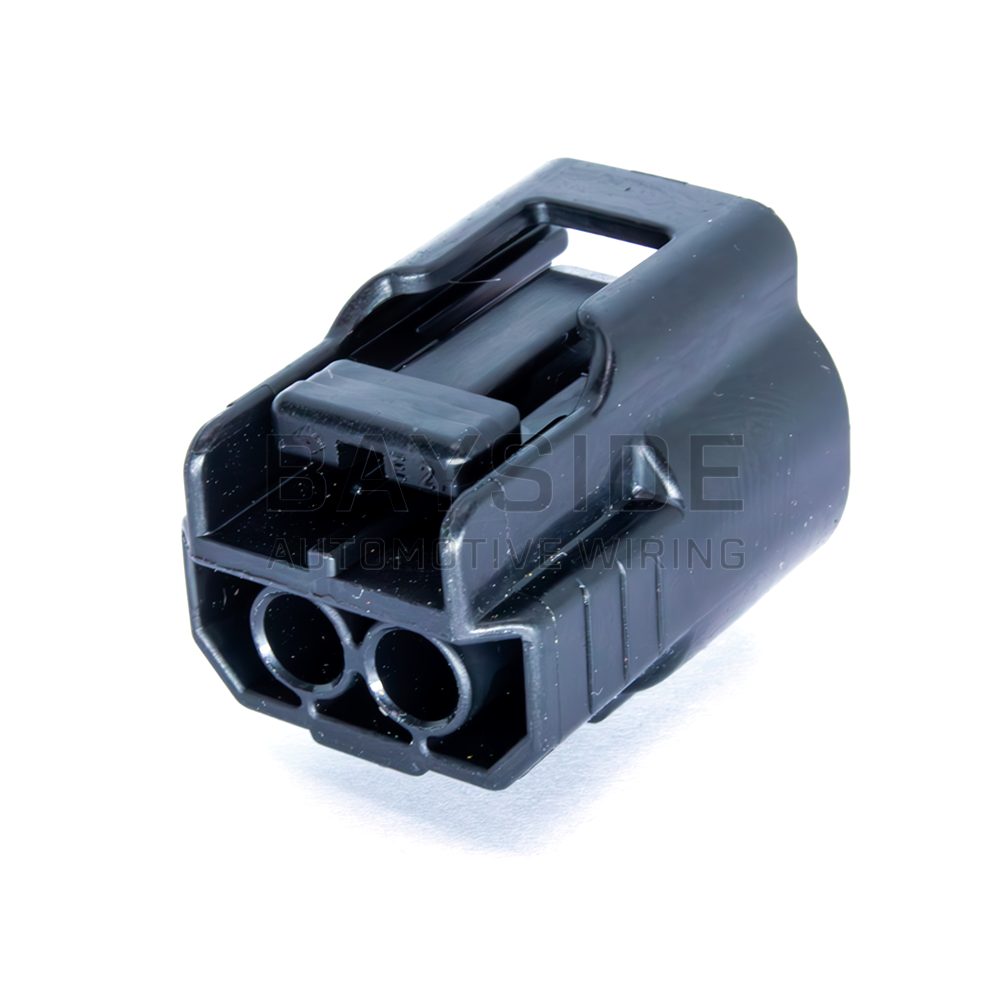

  • VCT Actuator Connector - Barra BA / BF / FG rear angle

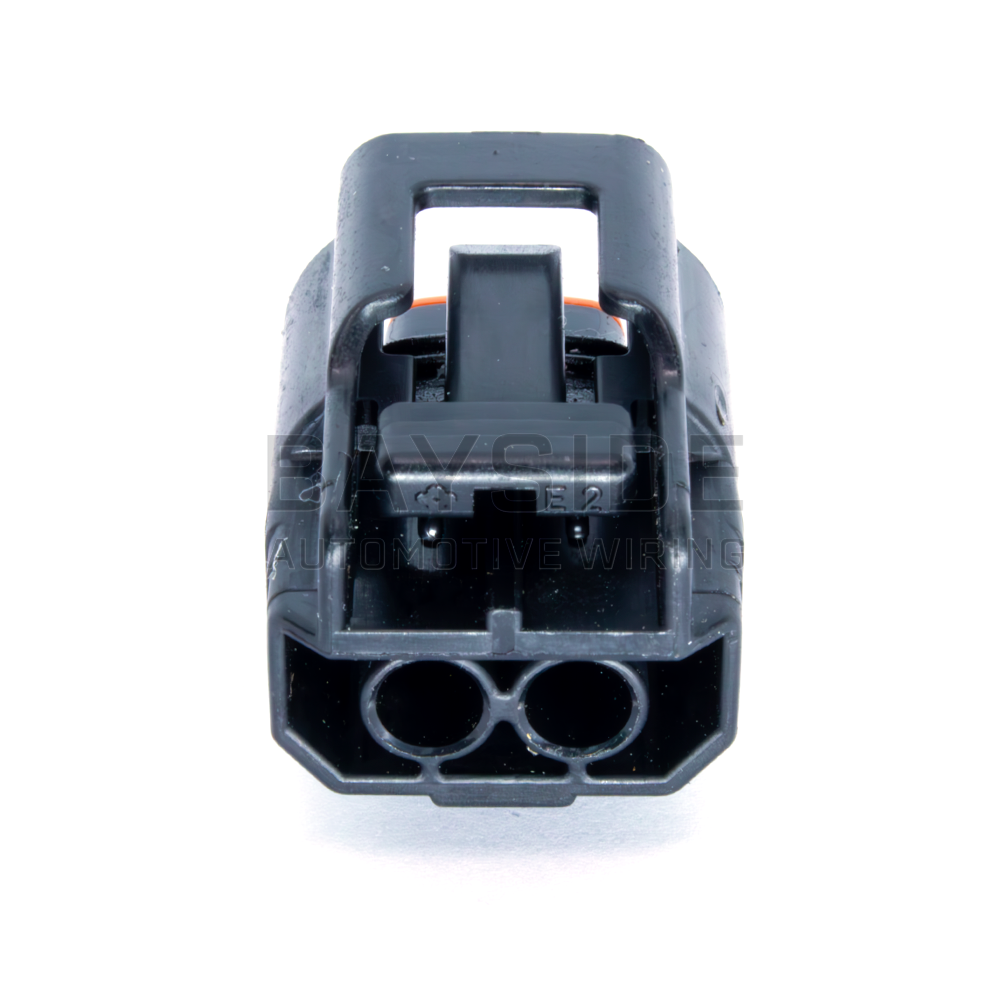

  • VCT Actuator Connector - Barra BA / BF / FG rear view

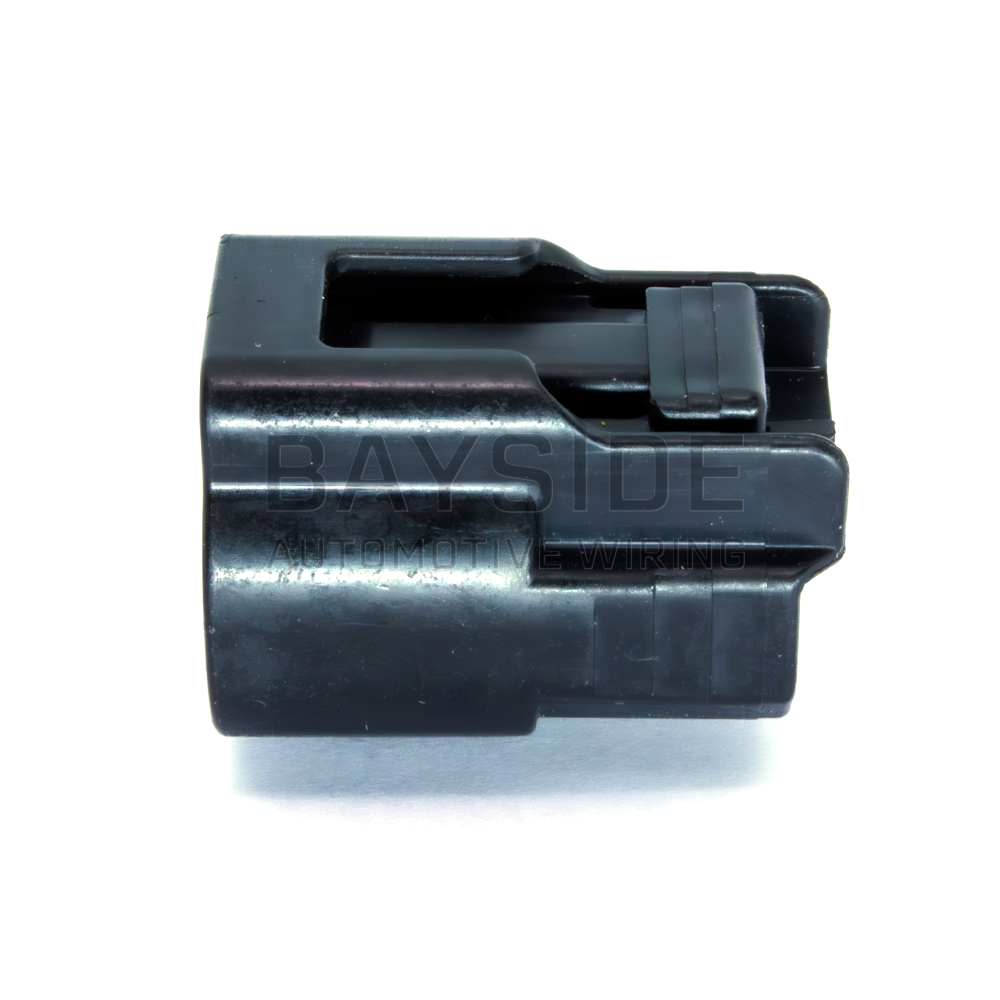

  • VCT Actuator Connector - Barra BA / BF / FG side view
1 7

VCT Actuator Connector - Barra BA / BF / FG

VCT Actuator Connector - Barra BA / BF / FG

$11.95 AUD
$11.95 AUD $11.95 AUD
Sale Sold out
Shipping calculated at checkout.
Style

This connector is for the two VCT Solenoids located on the front of the rocker cover on barra motors.

Connector Style Ford
Pin Count 2
Recommended Wire Gauge
AWG & Nominal Area		 16 AWG
1.5 mm2
Compatibility Falcon BA / BF / FG

Kits come with terminals, seals + spares. Pigtails are provided on 15cm wire of suitable gauge, for connection method of your choosing (crimp / solder).

Please ensure you have checked compatibility of parts before ordering, and contact us with any questions you may have.
