Accelerator Pedal Harness - Barra FG

This wiring loom / harness is suited for any Barra motor running a FG ECU and matching accelerator.

Overall length is 1900mm, allowing for plenty of length to suit all conversions into larger vehicles such as Patrols, Cruisers, etc

The wires are twisted throughout the harness and sheathed in expandable braid, allowing the loom to be flexible and protected from abrasion. This also ensures that small loops can be made to take up some of the length and be tucked away if necessary.

Original factory colours are used for the wiring, ensuring that everything matches the Ford wiring diagrams, for ease of installation and future troubleshooting/ modifications to the ECU wiring.

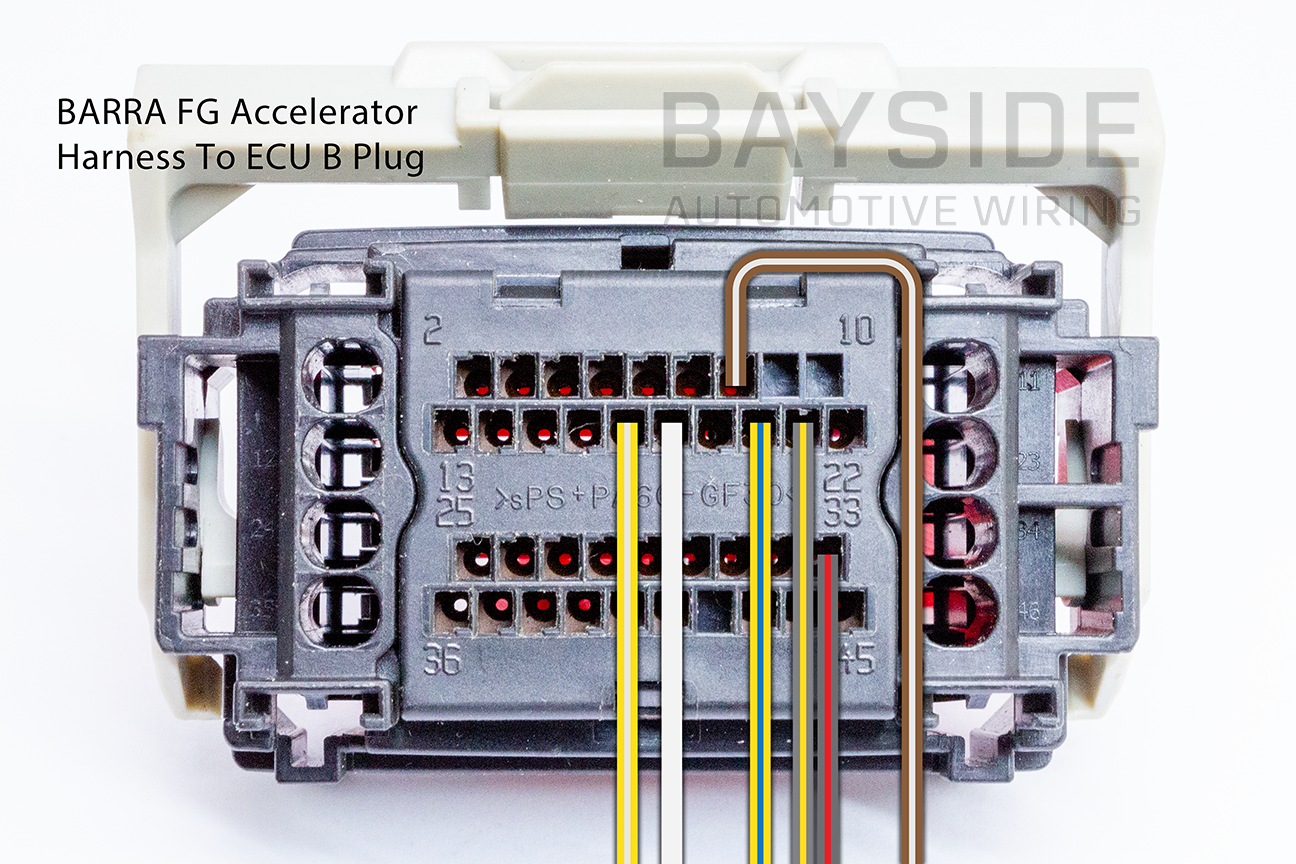

Each pin is labelled with heat shrink for the ECU B connector, and all wires are terminated with an ECU pin.

There may be cases where 1 pin needs to be spliced.

If the following terminal is in use, you must cut the pin off and splice the wire into the existing connected wire.

B33 SIGRTN - Shared with Tiptronics - AT4 / 5 Speed

The terminal side of this harness will come with plastic wrap around it to allow for easier passing through the vehicles firewall.
