Accelerator Pedal Harness - Barra BF

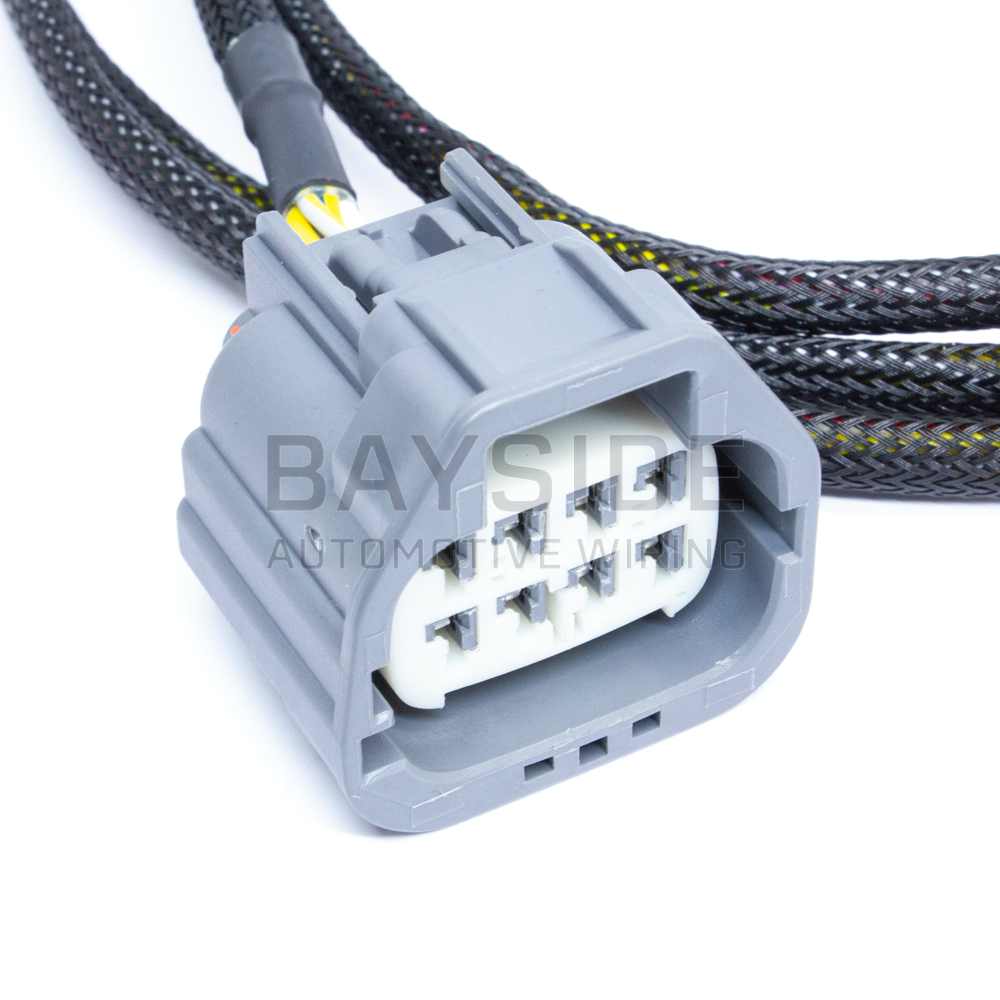

This wiring loom / harness is suited for any Barra motor running a BF ECU and matching accelerator.

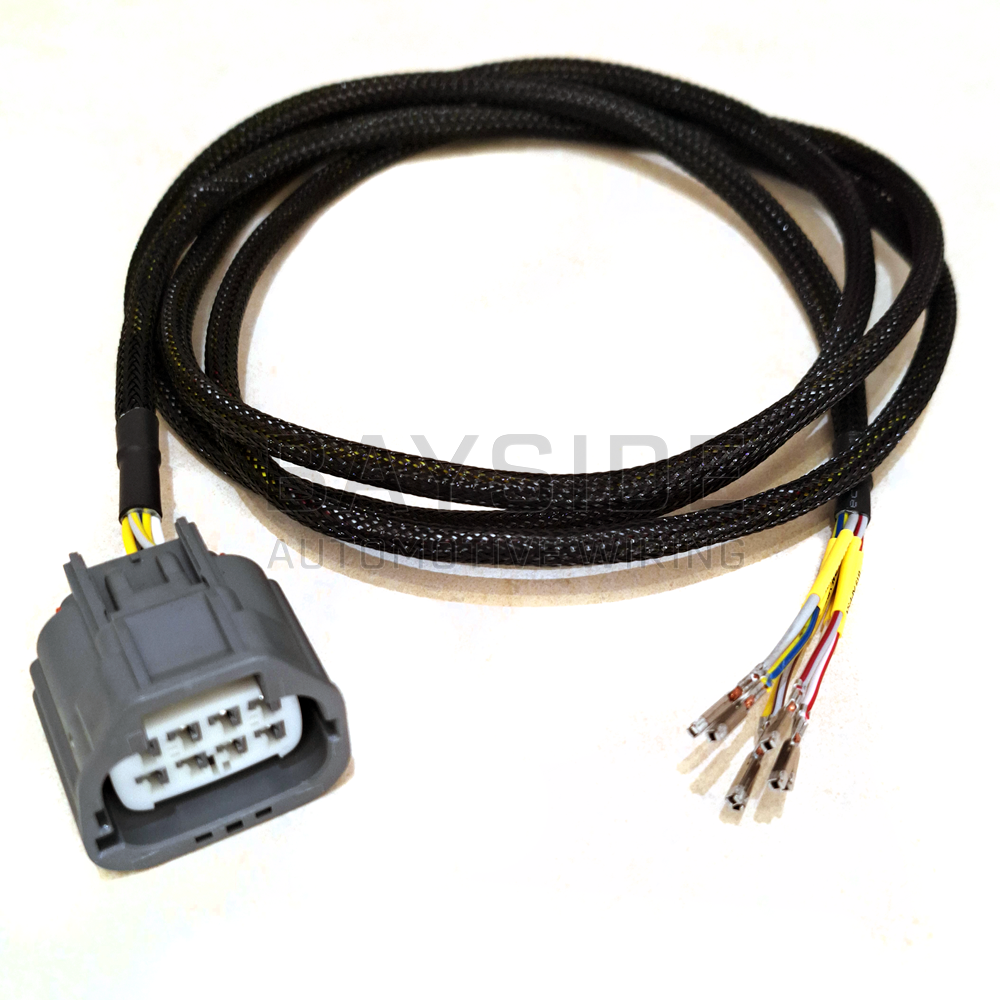

Overall length is 1900mm, allowing for plenty of length to suit all conversions into larger vehicles such as Patrols, Cruisers, etc

The wires are twisted throughout the harness and sheathed in expandable braid, allowing the loom to be flexible and protected from abrasion. This also ensures that small loops can be made to take up some of the length and be tucked away if necessary.

Original factory colours are used for the wiring, ensuring that everything matches the Ford wiring diagrams, for ease of installation and future troubleshooting/ modifications to the ECU wiring.

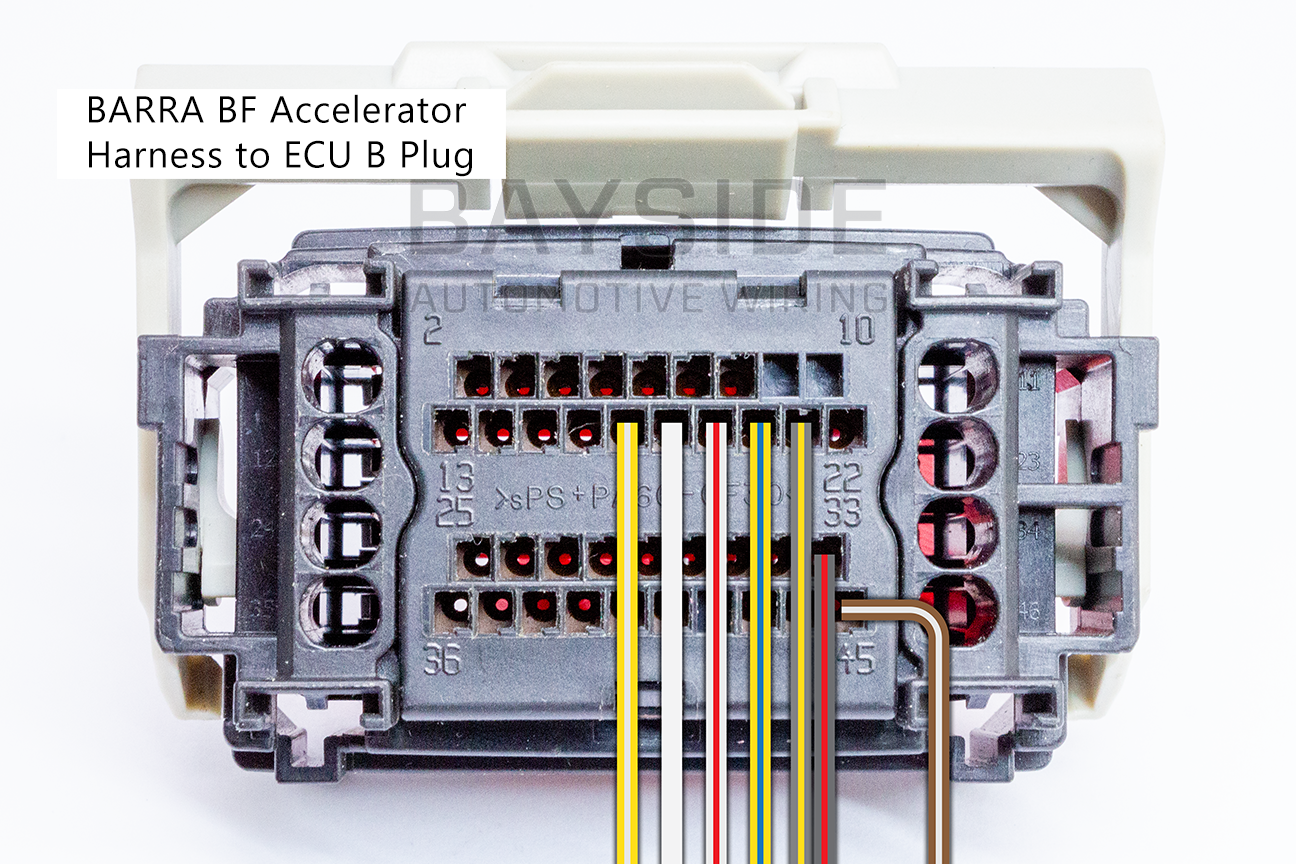

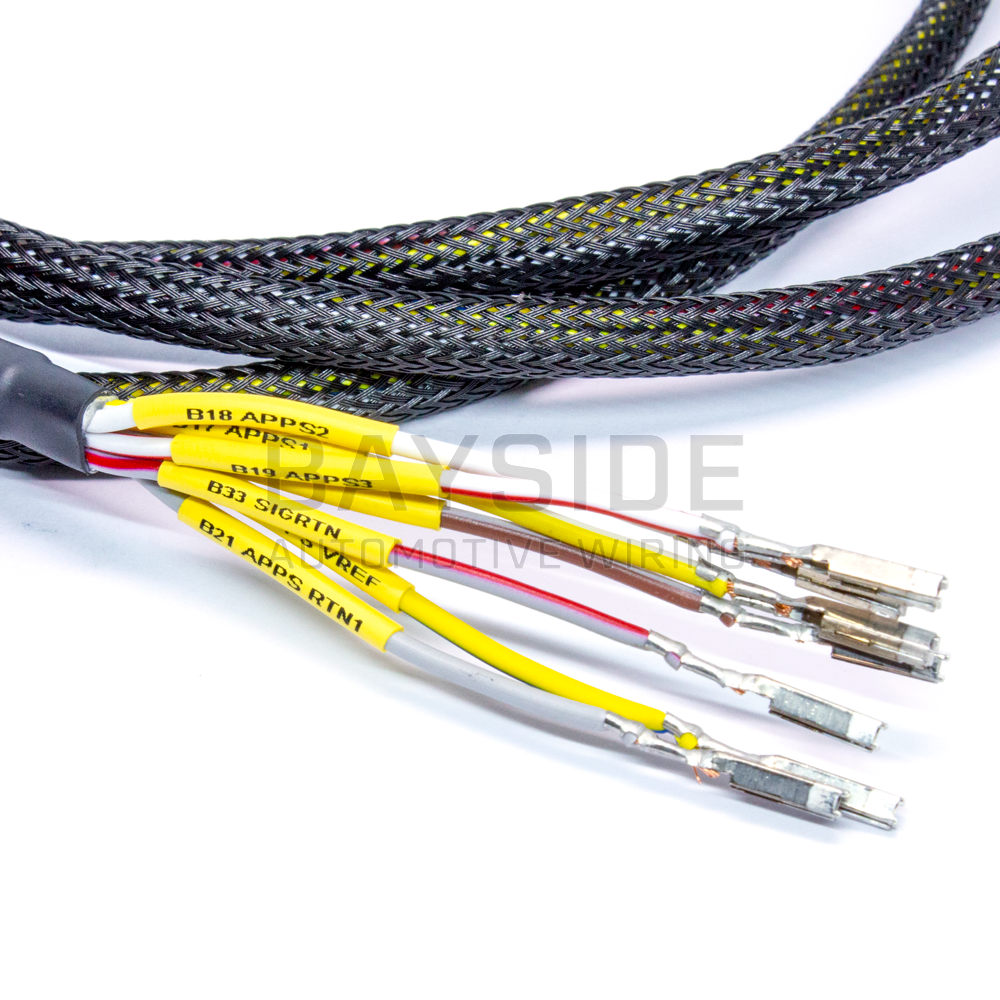

Each pin is labelled with heat shrink for the ECU B connector, and all wires are terminated with an ECU pin.

There may be cases where 2 pins need to be spliced.

If the following terminals are in use, you must cut the pin off and splice the wire into the existing connected wire.

B37 SIGRTN - Shared with AT Sequential Sports Shift, and Steering Column Cruise Control.

B45 VREF - Shared with AT4 Sequential Sports Shift

The terminal side of this harness will come with plastic wrap around it to allow for easier passing through the vehicles firewall.

If you are using a BA ECU, please email me so I can make one up custom, the ECU pinouts and wire colours are different.
